TELEMETRY PLATFORM
What Refrigeration Monitoring Actually Means
In a supermarket setting, refrigeration monitoring refers to the continuous data collection, logging, and evaluation of mechanical and thermal variables across all refrigerated zones. Rather than relying solely on manual spot-checks once per shift, digital monitoring continuously reads sensor nodes installed throughout the cold chain.
These variables typically include:

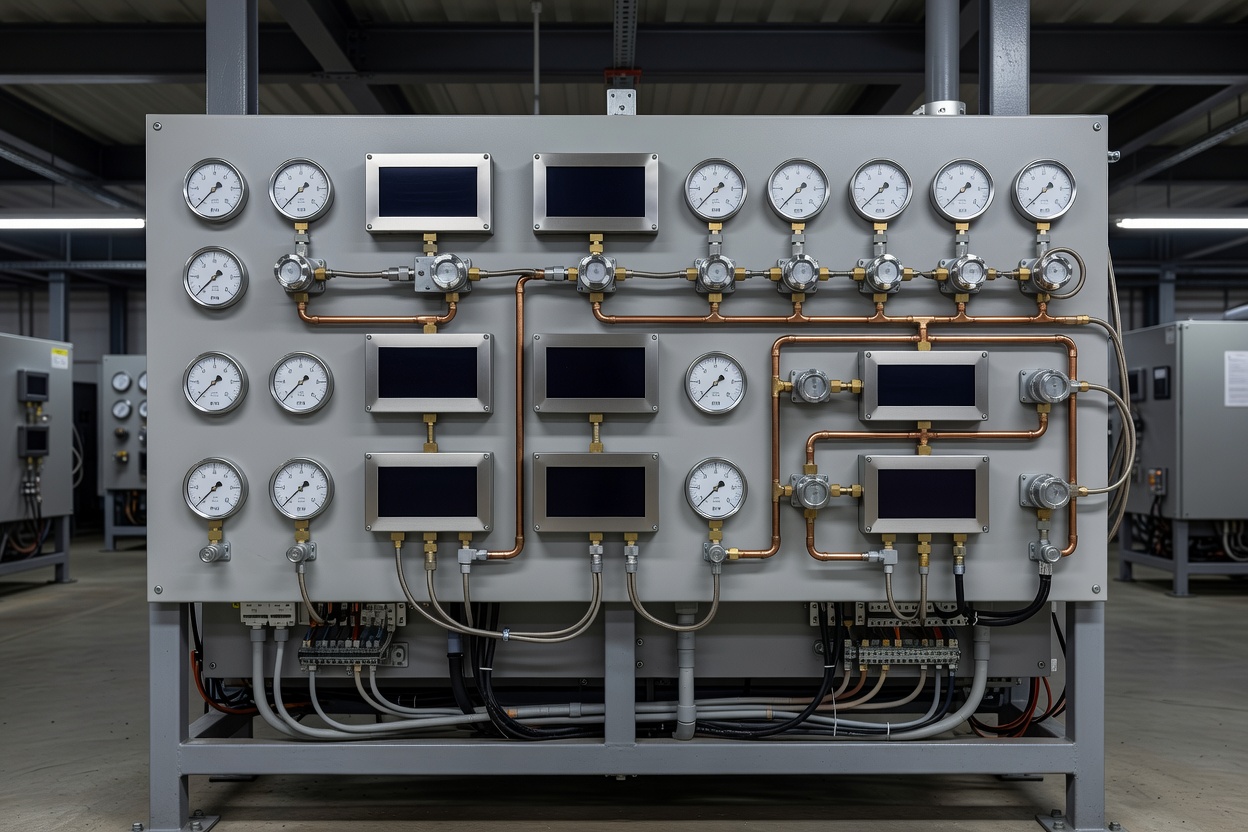

- Suction and Discharge Pressures: Monitoring compressor health and refrigerant flow stability at the central rack.
- Air-Off and Air-On Temperatures: Evaluating the temperature of air as it leaves the cooling coil (air-off) versus when it returns from the retail sales floor (air-on).
- Evaporator Superheat: Measuring the temperature rise of refrigerant vapor leaving the evaporator coil to verify proper expansion valve operation.
- Defrost Cycle Performance: Tracking initiation frequency, termination temperatures, and post-defrost pulldown recovery durations.
Monitoring vs. Servicing: A Fundamental Distinction
It is essential for store managers and technical teams to maintain clarity regarding the operational boundary between monitoring and servicing:
Automated Monitoring
Observes system status, logs sensor streams, identifies anomalies (such as gradual thermal creep or failed defrost termination), and generates prioritized notifications.
Limitation: Telemetry cannot physically adjust an expansion valve, clean a fouled condenser, or replace a failing fan motor.
Hands-On Servicing
Conducted on-site by qualified refrigeration technicians to inspect physical hardware, test electrical contactors, clear drainage lines, and perform necessary repairs.
Limitation: Periodic servicing without monitoring leaves stores blind to sudden mid-cycle failures between scheduled visits.
Key Retail Refrigeration Zones
A typical supermarket layout contains diverse thermal envelopes, each presenting distinct thermodynamic behavior and airflow dynamics:
1. Open Multi-Deck Display Aisles
Open dairy, meat, and beverage cases rely heavily on an invisible "air curtain" designed to separate cold internal airflow from ambient store humidity. Monitoring these units requires observing both the air discharge honeycomb and the return air grille to detect disruptions caused by store drafts or customer product placement.
2. Glass-Door Low-Temperature Cabinets
Frozen food cabinets feature heated glass doors, perimeter frame heaters, and high-frequency defrost cycles. Telemetry tracks temperature stability and door-opening frequency to ensure moisture does not form frost bridges across fan shrouds.
3. Backroom Cold Storage & Preparation Chillers
Walk-in storage rooms experience intermittent, heavy thermal loads during stock replenishment deliveries. Monitoring systems record pulldown rates after warehouse doors close, ensuring the room returns to nominal operating setpoints within expected timeframes.
Exception Handling & Escalation Workflows
Effective monitoring avoids alert fatigue by categorizing sensor events into logical escalation tiers:
| Alert Level | Observed Condition | Recommended Workflow |
|---|---|---|
| Tier 1: Advisory | Minor pulldown delay following scheduled defrost cycle. | Automated continuous logging; notify store floor team to verify case stocking limits. |
| Tier 2: Warning | Discharge air elevated above threshold for > 45 minutes outside defrost. | Inspect case return grilles for physical product blockage or fan motor stoppage. |
| Tier 3: Action | Persistent thermal rise across multiple evaporator circuits on common rack. | Dispatch qualified refrigeration service technician immediately for compressor rack triage. |
Advantages and Limitations of Monitoring Frameworks
Operational Advantages
- Identifies micro-trends (e.g., progressive coil icing) prior to complete thermal failure.
- Provides verifiable historical temperature logs for store quality records.
- Enables targeted technician dispatch with prior insight into the affected circuit.
Practical Boundaries
- Requires calibrated, correctly positioned sensors to avoid false positive alarms.
- Relies on trained store personnel to respond appropriately to generated notifications.
- Does not prevent mechanical component wear without regular physical maintenance.
